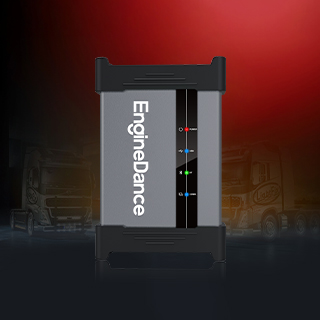

【X5】

HIGH QUALITY HARDWARE, DUAL MODE LINK, WORRY -FREE AFTER -SALES

• Aviation technology is as solid as a rock: Hardware shell adopts aviation alloy laser engraving process, anti-fall, even if the car pressure can be easily dealt with.

• Dual mode communication convenience - speed: Wireless Bluetooth and high-speed USB-typc C dual-mode communication, balancing convenience and speed.

• Two year warranty and worry free after-sales service: Two years of extended warranty period ensures worry free use of the product.

POWERFUL SOFTWARE PRECISE DIAG, DATA COMPATIBILITY

• Wide coverage,not just Chinese brands:

  Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.

  ECU: Bosch, Denso, Cummins, Delphi, Continental, Trw,Ectek ...

  Engine: Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai ...

• Powerful and Stable ECU re-programming function:

  Covering most ECU Flash

  (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG) Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles, covering almost all electronic control systems of commercial vehicles in China, not listed one by one.

  Gas flash, Woodward OH6, OH2.0, Bosch EGC4 flash;

  Post processing DCU flash

  Transmission module flash, retarder flash

  Stable flashing, simple operation, using dual verification technology, stable flashing and extremely low probability of flashing death; Easy to operate and get started with

  VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton

• Advanced features, professional and comprehensive:

  DPF regeneration with comprehensive coverage

  Calibration

  SCR detection

  NOX Sensor detection

  VECU maximum speed adjustment calibration

  Urea injection temperature setting

  CAN Bus, Instrument drive.

  Read OBD pin voltage

• Remote assistance and timely service:

  Remote assistance, one click start, the distance between you and engineers and teachers is only one button. Engineers or teachers can remotely help you Flash Diag and calibration, which is simple and efficient. You no longer have to worry about not being able to operate the computer or flash.

• One click software upgrade:

  Software update, one click software update, without complex operations, only one click, the software automatically updates to the latest version.

• International vehicle brand diagnosis and re-programming:




  Diagnosis: Volvo, Man, Scania, Mercedes-Benz, Daf, Hino, Fuso, Iveco, UD, Caterpillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, VW ...

  Programming ECU:

• Scania

  Scania EMS/EDC S6 250Kbps (MPC555/556)                  Scania EMS S6 500Kbps (MPC555/556)

  Scania EMS S8 250Kbps (MPC5566)                                    Scania EMS S8/EMD1 500Kbps (MPC5566)

  Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam          Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam

  Reading, writing, checksum correction.

• MAN

  MAN Bosch EDC7C32 [0281020067]-OBD/Bench          MAN Bosch EDC17CV42 [0281020273, TC1797]- Bench

  MAN Bosch MD1CE100 TC299- Bench

  Reading, writing, checksum correction.

• Denso SH725XX/1N83M/ SH705X Bench

  1N83M FLASH Reading, writing, checksum correction                   1N83M EEPROM Reading, writing

  SH72543 FLASH Reading, writing, checksum correction                SH72543 EEPROM Reading, writing

  SH7055 FLASH Reading, writing, checksum correction                  SH7055 EEPROM Reading, writing

  SH7058 FLASH Reading, writing, checksum correction                  SH7058 EEPROM Reading, writing

  SH7059 FLASH Reading, writing, checksum correction                  SH7059 EEPROM Reading, writing

• Toyota/Lexus Gen 3

  R7F701202/R7F701216 P5-UDS

  LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)

  LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)

  LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216) LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201) Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)

  Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)

  Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]

  Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]

  Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]

  Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]

  Reading, writing, checksum correction

• Trucks Delphi ETC3

  Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used in

  DAF, Kenworth, Peterbilt, Hyundai trucks.

  DAF/Industrial Delphi ETC3

  Delphi ETC3 REV A/B/C ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb. Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH. REV 0 and REV H ECUs are not supported.

  Hyundai Delphi ETC3

  Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.

  Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.

• Trucks Delphi DMCI CAN

  Module for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks. ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.

  Allows to read and write calibration area through CAN-bus with checksumm correction on writing. DAF/Kenwroth Delphi DMCI

  Hyundai Delphi DMCI

• IVECO Light truck

  IVECO EDC17C69 Bench                                                         IVECO EDC17C49 Bench

  IVECO MD1CS069[Support Bench lock Ecu]                   IVECO MD1CS089 Bench

  IVECO DCU17PC42/PC43 Bench

• Isuzu/Transtron

  ISUZU 4HK1/6HK1/4JJ1:SH7058                                                         ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533

  ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546                      ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546

• Kia/Hyundai

  Modern/Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)

  D6CF Delphi ETC3 Series MPC5566-OBD

  Kia/Hyundai Kefico/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD

  Kia/Hyundai Euro 6 (Denso SH72543)-Bench

  Kia/Hyundai DCM3.7AP

  Reading, writing, checksum correction.

• BOSCH MD1 Bootloader

  MD1CE100 AURIX SAK-TC299TP                 MD1CE108 ST-SPC5898

  MD1CS089 SAK-TC299TP                               MD1CS069 SAK-TC299TP

  MD1CC878/868 ST-SPC58XX

  Reading, writing, checksum corrections

• Volvo Truck

  Volvo/Renault/Construction Machinery EMS2.0(MPC56X)-OBD                       Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)-Bam

  Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)- Bench                               Volvo/Renault/UD/MACK truck EMS2.3(MPC5674F)- Bench

  Volvo/Renault/UD/MACK truck EMS2.4(MPC5777C)- Bench

  Reading, writing, checksum correction.

• Ford Transit /Ranger, Land Rover Defender

  Land Rover Defender SID208- Bench/ Bam               Ford Ranger SID209-OPEN

  Ford Transit SID208 OBD/Bench / Bam                      Ford Transit SID209 OBD/Open

  SID604 OBD writing, checksum

  Reading, writing, checksum correction.

• Toyota/Lexus/Scion/Hino Gen 2

  76F0196/198/199/219 P5-CAN-bus                           76F0199 GearBox P5-CAN-bus

  Reading, writing, checksum correction.

• DELPHI

  Yuchai DCM3.2/DCM6.2AP/DCM6.24

  Yuchai DCM7.1AP/ DCM7.24

  Dongfeng M9T DCM7.1AP

  Great Wall/Haval DCM6.2AP

  HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP

  Great Wall/Haval DCM3.7AP

  Kia/Hyundai DCM3.7AP(SH725xx)

  DOOSAN/Bobcat/Kioti/McCormick DCM3.7AP

  SsangYong 2.0L XDI DCM3.7AP

  DOOSAN/Bobcat/Kioti/McCormick (DCM3.7AP)

  GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)

  JAC DCM6.2AP

  Qingling/Isuzu DCM6.2AP

  Qingling/Isuzu DCM7.1AP

  Yunnei DCM6.24

  Yunnei DCM7.24

  Changan DCM7.1AP

  OBD Reading, writing, checksum correction.

  DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum

  DCM 6.2AP open model SPC56X

• BOSCH EDC

  DCU17CV51 TC1724 Bench (SAIC/JBC)

  DCU17HD01/DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)

  VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)

  DCU17PC42/PC43 Bench (IVECO, FOTON, HYUNDAI)

  EDC17CV44/54 OBD/Bench/Open

  EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]

  EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]

  EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]

  EDC17CV41 OBD/Bench/Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)

  EDC17CV42 Bench MAN

  EDC7UC31 MPC561/562 OBD/Bench

  EDC7C1(lveco, Doosan, etc,series chip:MPC555)

  EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD

  EDC16UC40 MPC561/562 OBD/Bench

  EDC16C39 MPC561/562 OBD/Bench

  EDC17CP52 TC1797 Bench(Ivevo,Fuso)

  EDC17C69 TC1793 Bench IVECO

  EDC17C49 TC1797 Bench IVECO

  EGC4 TC1797 BGA Bench

  EDC17C83 TC1793 Bench ISUZU

  MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)

  MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)

• Others

  Continental FAW 52E/91E SPC563X OBD/Open/checksum

  Continental Weichai WISE15/15C SPC564X OBD/Open/checksum

  Continental FAW 32F/36F OBD /checksum

  Econtrols LNG/CNG 3G/4G OBD Model

  Woodward LNG/CNG OBD Model/Recover

  ZF Transmission OBD writing/checksum

  ZF Retarder OBD writing

  WABCO ECAS Reading, writing

  WABCO ABS/EBS Reading, writing

  Knorr ECAS Reading, writing

  Knorr ABS/EBS Reading, writing

  VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)

  Covering most ECU Flash

  (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/

  Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/

  SANY/CHENGLONG)

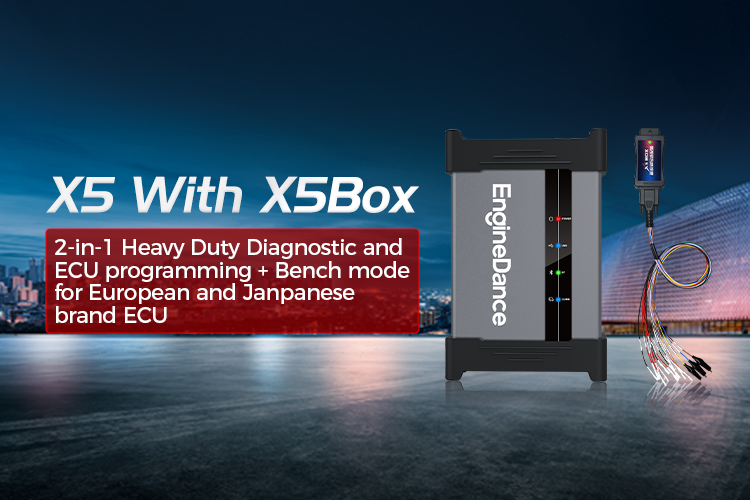

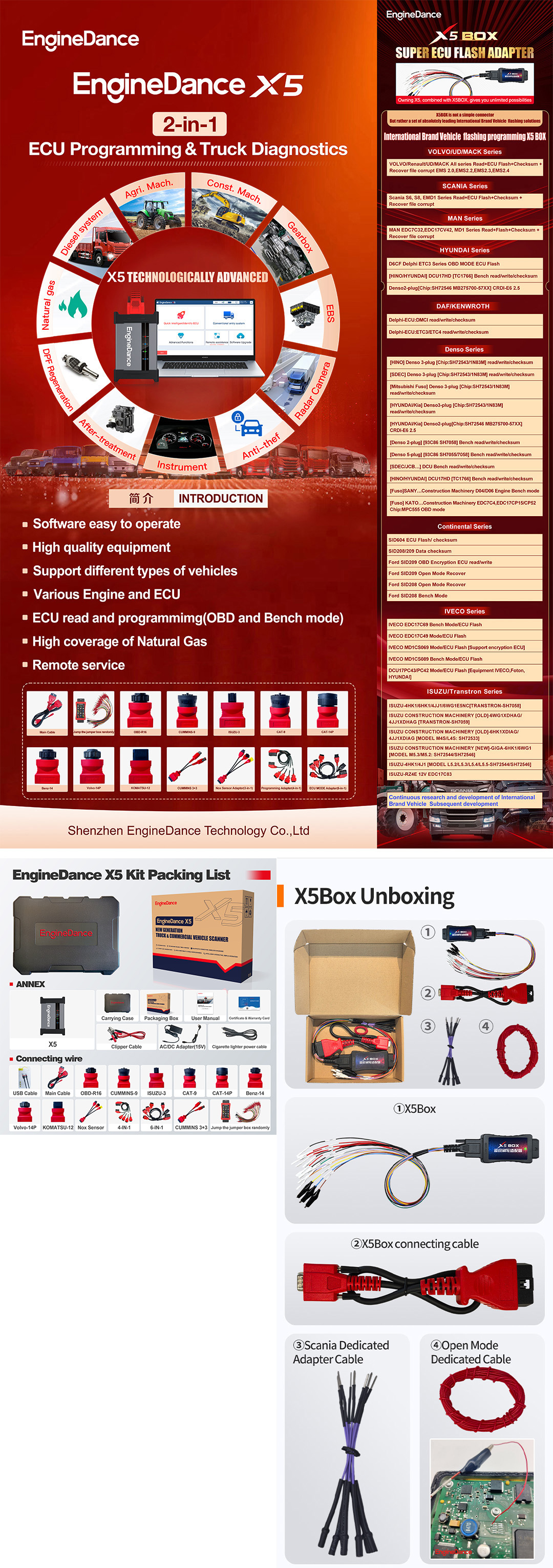

【X5Box】

• Volvo/UD/MACK Series

  Volvo/Renault/UD/MACK series MODE+ECU Flash+Checksum+Recover file corrupt

  Volvo/Renault/Construction Machinery Engine EMS2.0 (Euro 2/3-chip: MPC56X) 【 OBD Mode 】 Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554) 【 BAM Mode 】

  Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554)【 BENCH Mode 】

  Volvo/Renault/UD/MACK truck engine EMS2.3 (Chip: MPC5674F)【 BENCH Mode 】

  Volvo/Renault/UD/MACK truck engine EMS2.4 (Chip: MPC5777C)【 BENCH Mode 】

• SCANIA Series

  Scania S6/S8/EMD1 engine series MODE+ECU Flash+ Checksum+Recover file corrupt

  Scania S6 engine [Chip: MPC555/MPC556] - OBD Mode

  Scania S8/EMD1 Engine [Chip: MPC5566] - OBD Mode

  Scania S8/EMD1 Engine [Chip: MPC5566] - BAM Mode

• HYUNDAI Series

  D6CF Delphi ETC3 Series OBD MODE ECU Flash

  [HINO/HYUNDAI] DCU17HD [TC1766] Bench read/write/checksum

  Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5

• Denso  Series

  [HINO] Denso 3-plug [Chip:SH72543/1N83M]

  [SDEC] Denso 3-plug [Chip:SH72543/1N83M]

  [Mitsubishi Fuso] Denso 3-plug [Chip:SH72543/1N83M]

  [HYUNDAI/Kia] Denso3-plug [Chip:SH72543/1N83M]

  [HYUNDAl/Kia] Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5

  [Denso 2-plug] [93C86 SH7058] Bench

  [Denso 5-plug] [93C86 SH7055/7058] Bench

  [SDEC/JCB…] DCU Bench read/write/checksum

  [HINO/HYUNDAI] DCU17HD [TC1766] Bench

  [Fuso]SANY…Construction Machinery D04/D06 Engine Bench mode

  [Fuso] KATO…Construction Machinery EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD mode

• MAN Series

  MAN (TGA/TGL/TGM/TGS/TGX) engine EMS  (OBD/BEACH ECU Flash)

  EDC7C32 MODE+ECU Flash+Checksum EDC17CV42 MODE+ECU Flash+Checksum

  MD1 Series MODE+ECU Flash+Checksum

• DAF/Kenwroth

  Delphi-ECU:DMCI read/write/checksum

  Delphi-ECU:ETC3/ETC4 read/write/checksum

• Continental Series

  Continental SID604 ECU Flash/Checksum

  SID208/209 Data Checksum

  Ford SID209OBD Encryption ECU MODE Flash Ford SID209 Open Mode Recover file corrupt

  Ford SID208 Open Mode Recover file corrupt

  Ford SID208 Bench MODE

• IVECO Series

  IVECO EDC17C69 Bench MODE/ECU Flash

  IVECO EDC17C49 MODE/ECU Flash

  IVECO MD1CS069 MODE/ECU Flash【Support encryption ECU】

  IVECO MD1CS089 Bench MODE/ECU Flash   IVECO handle DCU17PC43/PC42 MODE/ECU Flash 【Equipment IVECO,foton,HYUNDAI】

• ISUZU/Transtron Series

  ISUZU-4HK1/6HK1/4JJ1/6WG1E5NC[Transtron-SH7058]

  ISUZU Construction Machinery [Old]-6WG1XDHAG/4JJ1XDHAG [Transtron-SH7059]

  ISUZU Construction Machinery [Old]-6HK1XDIAG/4JJ1XDIAG [Model M4S/L4S: SH72533]

  ISUZU Construction Machinery [New]-GIGA-6HK1/6WG1 [Model M5.3/M5.2: SH72544/SH72546]

  ISUZU-4HK1/4J1 [Model L5.2/L5.3/L5.4/L5.5-SH72544/SH72546]

  ISUZU-RZ4E 12V EDC17C83
